Guideline (Beginner,Concept) Use Contribution Links from any element only to a Softgoal element.


This stable version of the Guideline Wiki Page displays the guideline as per the i* Style of the University of Toronto. Registered users can use 'Open Version' link right at the end of the guideline statement below to access the open version of this page



Discussion: Contribution Links are not allowed from any element to a goal, only to Softgoals. Please refer to Section 5.5 'Contribution Links' for an explanation about Contribution Links.

Figure 1 depicts only two possible cases of wrong uses of Contribution Links (from a Task to a Goal and from a Task to a Task). There are other wrong cases, however, that the Contribution Link should not be used in such as Goal to Goal, Goal to Task, Softgoal to Goal, and Softgoal to Task.

Figure 2 illustrates all the possible correct cases of using Contribution Links to a Softgoal element using i* notation.

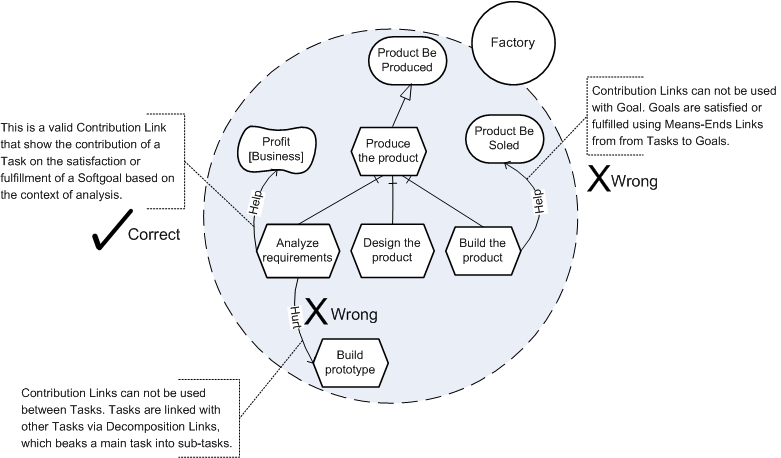

Figure 1 An example of some possible correct and wrong uses of Contribution Links




Image         Image

Figure 2 Contribution Links to a Softgoal element using i* notation





For questions regarding i* syntax please click on the "discuss" tab. This feature is available for registered users only. For registration information please see the Registration and User Rights Policy for the i* Wiki.
