Guideline (Beginner,Layout) Keep elements horizontal. Do not tilt or twist them. Open Version
Discussion: Maintain consistency in the orientation of the Dependums and internal elements to enhance the presentation and readability of the model. It is not recommended to tilt or twist the Dependums as this might impact the readability and presentation of the model.

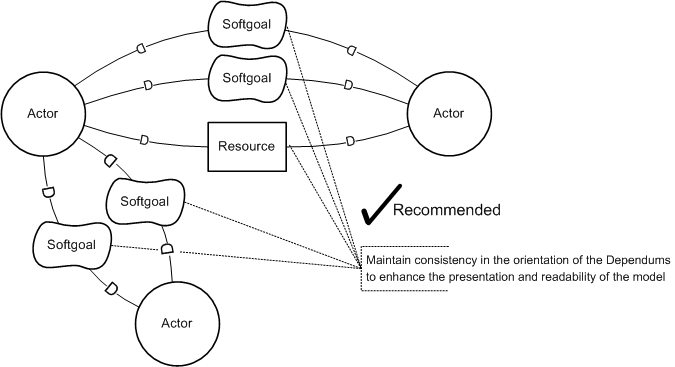

Figure 1 A recommended way of orienting the Dependums

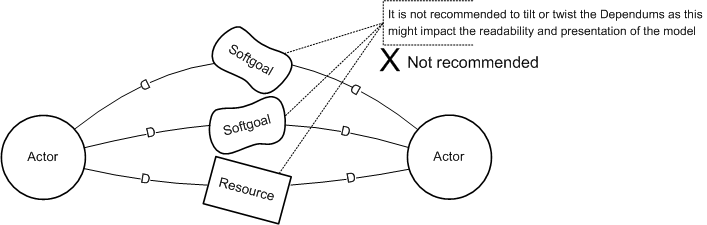

Figure 2 Tilting or twisting the Dependums is not recommended

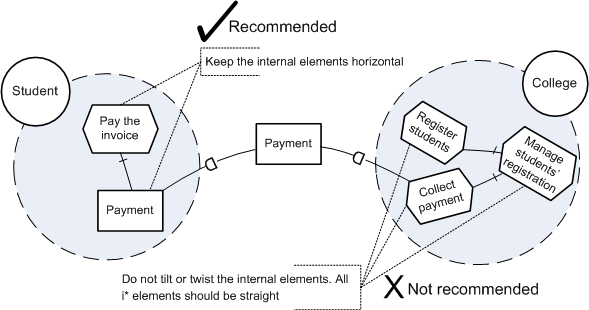

Figure 3 Tilting or twisting the internal elements is not recommended
